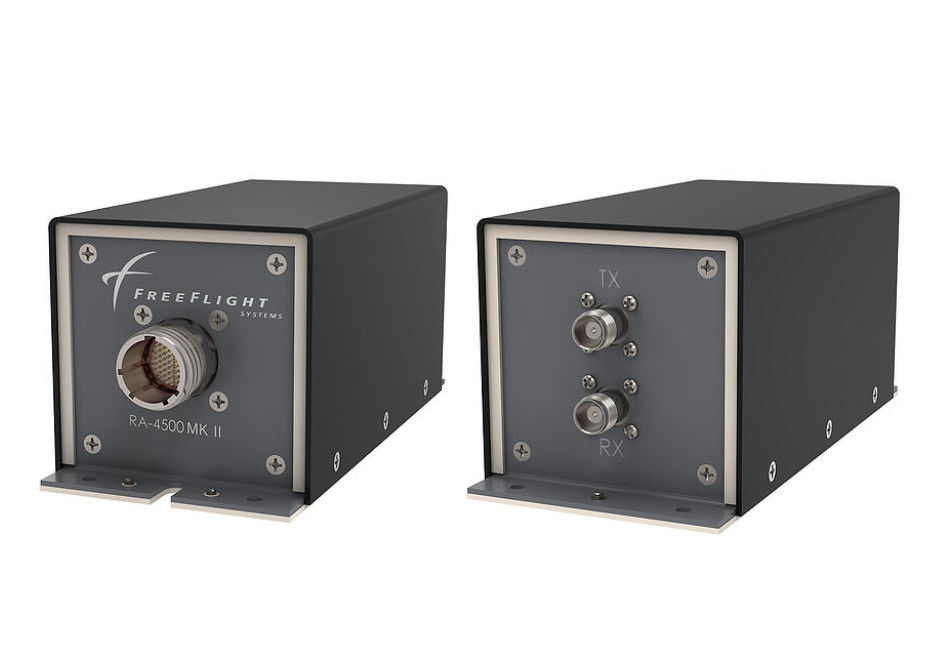

FAA TSO-C87a ETSO-C87a Airbus Radio Altimeter 5g Airplane Altimeter 28V DC

Product Description:

The Radio Altimeter is an advanced avionic instrument designed to provide pilots with crucial altitude data with remarkable precision and reliability. This essential piece of equipment is engineered for compatibility with a wide range of aircraft, from light general aviation planes to sophisticated commercial jets. It stands out in the market for its resilience against interference, including the emerging 5G C-Band signals, ensuring that pilots receive accurate and uninterrupted altitude readings at all times.

At the core of the Radio Altimeter's functionality is the 5G C-Band resistant radar technology, which mitigates the potential for signal intrusion from external sources, particularly the 5G cellular network frequencies. This feature guarantees that the altimeter's performance remains consistent and dependable, regardless of the proliferation of 5G services. Pilots can trust the readings they receive, especially during critical phases of flight such as approach and landing where precise altitude awareness is paramount.

The Radio Altimeter product is defined by its impressive radio altimeter range, providing pilots with accurate altitude readings from up to 2,500 feet above ground level. This range is suitable for a variety of flying operations, including navigating through challenging terrain, executing instrument approaches, and performing automatic landings. The altimeter's advanced radar technology ensures that altitude measurements are precise and responsive, giving pilots the data they need to make informed decisions and maintain safe flight operations.

Integration into an aircraft's avionics suite is seamless, thanks to the industry-standard ARINC 429 interface. This high-speed data bus allows for reliable and efficient communication between the Radio Altimeter and other onboard systems, ensuring that altitude data is readily available wherever it is needed. The implementation of the ARINC 429 standard also simplifies installation and maintenance, making the Radio Altimeter an attractive choice for operators looking to upgrade their avionics without extensive modifications.

The Radio Altimeter is designed to be robust and user-friendly. It features a digital display type that provides pilots with clear and immediate altitude readouts. The display is designed with readability in mind, allowing pilots to quickly discern altitude information with just a glance, which is especially valuable in high-workload situations. The digital interface is intuitive, ensuring that the critical altitude data is not only precise but also easily accessible.

Powering the Radio Alimeter is a 28V DC power supply, which is a common standard in aircraft electrical systems. This ensures compatibility with a wide range of aircraft without the need for additional power conversion equipment. The standardized power supply also contributes to the reliability of the Radio Altimeter, as it can be easily integrated with the aircraft's existing power architecture.

The compact dimensions of the Radio Altimeter, measuring at 6.5 X 3.5 X 2.5 inches, allow for installation in a variety of aircraft cockpits and instrument panels without compromising on valuable space. The altimeter's size and design are optimized to deliver functionality and performance without imposing significant weight or spatial demands on the aircraft.

Fulfilling the vital role of measuring the aircraft's height above the ground, the Radio Altimeter is equipped with a patch antenna type. This antenna configuration is chosen for its reliability and efficiency in transmitting and receiving radar signals. The patch antenna is known for its low profile and reduced aerodynamic drag, making it an excellent choice for the Radio Altimeter. Its design ensures that the altimeter's performance is optimized for accuracy and durability, even in the most demanding flight conditions.

In summary, the Radio Altimeter is a sophisticated, reliable, and essential avionic instrument that delivers accurate altitude readings while being resistant to 5G C-Band interference. It offers a broad radio altimeter range, is easy to integrate into existing avionics systems, and comes in a compact and efficient design. With its digital display, standardized power supply, and patch antenna, this Radio Altimeter is an indispensable tool for pilots, enhancing safety and situational awareness in all phases of flight.

Features:

• Product Name: Radio Altimeter
• Measurement Range: 0-2500 Feet
• Compatibility: Boeing, Airbus, And Other Commercial Aircraft
• Weight: 2.5 Lbs
• Interface: ARINC 429
• Power Supply: 28V DC
• Radio Altimeter Height Measurement Precision
• Radio Altimeter Frequency Agility

Technical Parameters:

Applications:

The BTSTC Model 4101A Radio Altimeter is an advanced avionic instrument essential for modern aeronautical operations. Originating from China with CE certification, this high-quality altimeter is crafted for both commercial and military aircraft requiring precise altitude readings. The BTSTC brand signifies reliability and precision, with each unit meticulously packaged in sponge and box to ensure its integrity upon delivery.

Designed to operate within the frequency range of 4.2-4.4 GHz, the BTSTC 4101A is not only accurate but also resistant to interference from emerging 5G C-Band signals, making it a state-of-the-art 5G C-Band resistant radar. The digital display offers pilots a clear and concise readout of altitude from 0 to 2500 feet, which is crucial for various phases of flight, such as takeoff, cruising, and particularly landing. The patch antenna provides reliable signal quality, ensuring consistent performance.

The BTSTC 4101A is versatile, supporting a wide operating temperature range from -55°C to +70°C, accommodating extreme weather conditions and varying climates without compromising its functionality. This robustness makes it suitable for aircraft operating in diverse environments around the globe. With a minimum order quantity of just one unit and a negotiable price point, the BTSTC 4101A Radio Altimeter is accessible to a broad range of customers, from small aviation businesses to large airlines.

Customers can expect a swift delivery time of just 7 days for sample orders, with the ability to supply up to 1000 units per month to meet high demands. Payment is convenient and secure through T/T payment terms. Scenarios where the BTSTC 4101A Radio Altimeter is indispensable include during critical approach and landing phases where accurate altitude readings are paramount for safety. This radio altimeter frequency precision ensures that pilots maintain the correct glide path and avoid potential obstacles or terrain.

The BTSTC 4101A Radio Altimeter is a vital tool for ensuring the safe and efficient operation of aircraft, contributing to safer skies and enhanced navigational capabilities. Its ease of integration, high reliability, and exceptional performance make it an optimal choice for any aircraft requiring accurate altitude measurement technology.

Customization:

Brand Name: BTSTC

Model Number: 4101A

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: sponge and box

Delivery Time: 7 days for sample

Payment Terms: T/T

Supply Ability: 1000/month

Certifications: FAA TSO-C87a, ETSO-C87a

Dimensions: 6.5 X 3.5 X 2.5 Inches

Interface: ARINC 429

Compatibility: Boeing, Airbus, And Other Commercial Aircraft

Operating Temperature: -55°C To +70°C

Enhance your aviation safety with the BTSTC Terrain Series Radar Altimeter, model 4101A, delivering precise radio altimeter height measurements for commercial aircraft. Designed to meet rigorous standards, including FAA TSO-C87a and ETSO-C87a certifications, this radio altimeter operates flawlessly in temperatures ranging from -55°C to +70°C, ensuring reliable performance in extreme conditions. With an interface of ARINC 429, it is compatible with both Boeing and Airbus fleets, among other commercial aircraft. Rely on the BTSTC 4101A for accurate terrain awareness and safe navigation.

Support and Services:

The Radio Alimeter product is equipped with a comprehensive technical support and services package to ensure optimal performance and reliability. Our support extends to product installation guidance, troubleshooting procedures, maintenance tips, and software updates. Our team of experts is dedicated to providing the assistance you need to keep your Radio Altimeter functioning at the highest standards. For detailed inquiries or to access our full suite of services, please refer to the support section of our website or consult the user manual.

Packing and Shipping:

Product Packaging for Radio Alimeter:

Each Radio Altimeter unit is securely encased in a custom-fit, shock-absorbent foam insert to ensure stability during handling. The foam is then placed within a sturdy, corrugated cardboard box designed to withstand the rigors of transportation. The box is sealed with heavy-duty, tamper-evident tape, providing additional security and integrity to the package. Clear labeling on the exterior indicates the product's fragility and orientation to prevent mishandling.

Shipping Instructions for Radio Altimeter:

The packaged Radio Altimeter is shipped via a trusted courier capable of handling sensitive electronic devices. Prior to dispatch, the package is weighed and dimensions are confirmed to calculate the appropriate shipping cost and to select the best transportation method. A tracking number is provided upon shipment to monitor the package's progress. It is recommended to opt for insurance to safeguard against potential damage during transit. Upon arrival, recipients should inspect the package for any external damage before signing for delivery.
