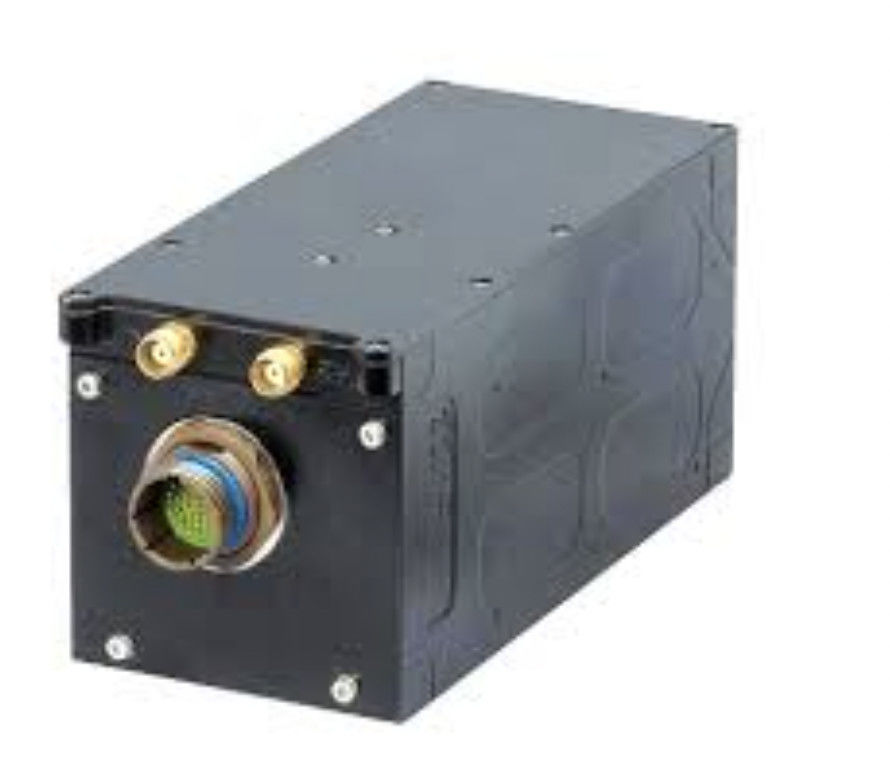

2.5 Lbs Digital Radio Altimeter Patch Antenna FAA Certified 0-2500 Feet

Product Description:

The Radio Altimeter, an advanced avionics component, is designed to provide pilots with precise altitude readings above terrain, crucial for safe takeoffs, landings, and low-level flight operations. With a robust power supply of 28V DC, this instrument is an excellent fit for a wide range of aircraft, including models from industry leaders such as Boeing and Airbus, as well as other commercial aircraft. The product's design ensures compatibility with various models, providing a versatile solution for different cockpit configurations.

At the heart of the Radio Altimeter's technology lies its sophisticated patch antenna. This type of antenna is known for its low profile, which is advantageous for aerodynamic efficiency and reduced wind resistance. A patch antenna is also revered for its ability to maintain a strong and stable signal, an essential attribute for the radio altimeter's operation. The Radio Alimeter's antenna is finely tuned to optimize the radio altimeter frequency, ensuring reliable and accurate altitude readings.

The interface of the Radio Altimeter adheres to the ARINC 429 standard, the most widely accepted data transfer protocol in the aviation industry. This standardization ensures that the Radio Altimeter can communicate seamlessly with other avionics systems, providing pilots with integrated flight data and enabling better decision-making. The use of the ARINC 429 interface also facilitates ease of installation and maintenance, as the standardized data format is widely understood by avionics technicians.

In terms of measurement capabilities, the Radio Altimeter boasts an impressive range, able to measure from 0 to 2500 feet. This range is particularly suited for radio altimeter height measurements during the critical phases of flight such as approach, landing, and after takeoff. The ability to accurately gauge altitude within this range is essential for ensuring the safety of the aircraft, especially when operating in challenging conditions or at airports with complex terrain.

One of the standout features of the Radio Altimeter is its resilience to interference from 5G C-Band signals. As the adoption of 5G technology increases worldwide, there has been growing concern over potential interference with aviation radar systems, including radio altimeters. This product has been carefully designed to resist such interference, incorporating filters and shielding techniques that protect the radio altimeter frequency from being disrupted by 5G C-Band transmissions. This feature ensures that the Radio Altimeter provides reliable altitude data, even in environments where 5G signals are present.

The enhanced safety provided by the Radio Altimeter is not only due to its precise altimetry but also to its role in various automated systems on modern aircraft. For example, the radio altimeter height information is crucial for the proper functioning of terrain awareness and warning systems (TAWS), ground proximity warning systems (GPWS), and various autopilot functions. The accurate and timely altitude data supplied by the Radio Altimeter enables these systems to provide warnings and assist pilots in maintaining a safe flight profile.

To summarize, the Radio Altimeter is a state-of-the-art avionic component that offers a powerful combination of precision, compatibility, and resistance to 5G C-Band interference. It provides comprehensive altitude measurement capabilities and integrates seamlessly into existing aircraft systems through its ARINC 429 interface. With its specialized patch antenna and broad measurement range, this Radio Altimeter is an essential tool for enhancing flight safety and operational efficiency in commercial aviation.

Features:

• Product Name: Radio Altimeter
• Radio Altimeter Frequency Range: 4.2-4.4 GHz
• Compatibility: Boeing, Airbus, and Other Commercial Aircraft
• Antenna Type: Patch Antenna
• Certifications: FAA TSO-C87a, ETSO-C87a
• Dimensions: 6.5 x 3.5 x 2.5 inches
• Radio Altimeter Range: Provides accurate altitude measurements for safe takeoffs and landings
• Radio Altimeter Height: Precise altitude data above the terrain

Technical Parameters:

Applications:

The BTSTC Model Number 4101A Radio Altimeter is a highly sophisticated avionic component designed to measure the altitude of an aircraft above the terrain directly beneath it. Originating from China, this instrument operates on a designated radio altimeter frequency, ensuring precise altitude readings crucial for safe flight operations. The BTSTC 4101A is certified with CE marking, affirming its compliance with European health, safety, and environmental protection standards.

As an essential tool for pilots, the BTSTC 4101A is typically used in a Terrain Series Radar Altimeter system, which provides vital data for various flight stages such as takeoff, en-route flight, and landing. The radio altimeter height information is particularly critical during the approach and landing phases, where the accurate knowledge of the aircraft's altitude above the ground is paramount for a safe touchdown, especially in low-visibility conditions or during automatic landings.

The BTSTC 4101A is compatible with a wide array of commercial aircraft, including models from Boeing and Airbus, showcasing its versatility and adaptability to different cockpit configurations. With an operating temperature range of -55°C to +70°C, the product is resilient to extreme environmental conditions, ensuring reliable performance in various climates.

Moreover, the BTSTC 4101A has achieved certifications from the Federal Aviation Administration (FAA TSO-C87a) and the European Technical Standard Order (ETSO-C87a), indicating its adherence to stringent safety and performance standards. It employs a Patch Antenna type, which is known for its low-profile design and efficient performance in determining radio altimeter height.

Customers interested in acquiring the BTSTC 4101A can expect meticulous packaging details, with the unit secured in sponge and box for optimal protection. The minimum order quantity for this product is one unit, with a negotiable price point. Upon order, the delivery time for a sample is set at approximately 7 days. Financial transactions for the purchase can be made through T/T payment terms, and the supply ability is robust, with up to 1000 units available per month. With a power supply requirement of 28V DC, the BTSTC 4101A is ready to integrate into the electrical systems of most commercial aircraft.

In summary, the BTSTC Model Number 4101A Radio Altimeter serves as an indispensable instrument for modern aviation, offering reliable and accurate altitude measurements in various flying scenarios. Its broad compatibility, coupled with admirable certifications and operational resilience, make it a sought-after component for airlines and aircraft manufacturers aiming to enhance flight safety and efficiency.

Customization:

Brand Name: BTSTC

Model Number: 4101A

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Sponge and box

Delivery Time: 7 days for sample

Payment Terms: T/T

Supply Ability: 1000/month

Compatibility: Boeing, Airbus, and other commercial aircraft

Power Supply: 28V DC

Interface: ARINC 429

Dimensions: 6.5 X 3.5 X 2.5 Inches

Certifications: FAA TSO-C87a, ETSO-C87a

Discover superior performance with the BTSTC Terrain Series Radar Altimeter, Model Number 4101A, offering reliable radio altimeter range functionality designed for Boeing, Airbus, and other commercial aircraft. Engineered to provide accurate radio altimeter height readings, this essential avionic device ensures safety and precision. Backed by certifications including the FAA TSO-C87a and ETSO-C87a, the BTSTC radar altimeter is the trusted choice for industry professionals.

Support and Services:

The Radio Alimeter product is designed to provide pilots with accurate altitude readings above terrain, ensuring a safe flight experience. Our product technical support and services are dedicated to maintaining the reliability and performance of your Radio Altimeter. We offer a comprehensive range of services to support your needs.

Our technical support includes troubleshooting assistance, firmware updates, and guidance on product usage. We provide detailed documentation and FAQs to help you understand the functionalities and features of your Radio Altimeter. Our team of experts is trained to address any technical concerns you may encounter, ensuring minimal downtime and optimal operation.

In addition to technical support, we offer calibration services to ensure your Radio Altimeter maintains its precision. Regular calibration is recommended to comply with aviation standards and regulations. We also provide repair services for any issues that may arise. Our repair process is streamlined to get your equipment back to you as quickly as possible, with minimal disruption to your operations.

We are committed to continuous improvement and welcome customer feedback to enhance our products and services. Our goal is to ensure your satisfaction and the safe operation of your Radio Altimeter for all your aviation needs.

Packing and Shipping:

The Radio Alimeter product is meticulously packaged to ensure its integrity and functionality upon delivery. Each unit is encased in a static-resistant bag, cushioned with custom-fit foam inserts to protect against shocks and vibrations during transit. The product is then placed in a sturdy, corrugated cardboard box, specifically designed to accommodate the size and shape of the Radio Altimeter. The box is sealed with high-quality packing tape and marked with fragile labels to alert carriers of the delicate contents.

Prior to shipping, each package is thoroughly inspected to confirm that the Radio Altimeter and all accompanying accessories are securely packed. The package includes a detailed instruction manual and any necessary cables or components required for installation and operation. A packing slip with the itemized list of contents is attached to the exterior of the box for easy verification upon receipt.

All shipments are dispatched with a reputable carrier, offering tracking capabilities and insurance options to safeguard the Radio Altimeter during its journey. Customers receive a shipping confirmation email with the tracking number and estimated delivery date. It is recommended that customers inspect the package upon arrival and report any damage immediately to customer service for prompt assistance and resolution.
