Anti Jamming Airplane Radio Altimeter 5G With All Solid Tate C Band
Product Details:
| Place of Origin: | China |
| Brand Name: | BTSTC |
| Certification: | CE |
| Model Number: | 4101A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | sponge and box |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500/month |
|
Detail Information |
|||
| Weight: | 2.5 Lbs | Power Supply: | 28 VDC |
|---|---|---|---|
| Range: | Up To 2,500 Feet | Resolution: | 1 Foot |
| Certifications: | FAA TSO-C87 And TSO-C88 | Operating Temperature: | -55°C To +70°C |
| Accuracy: | ± 10 Feet | Display: | Analog Or Digital |
| Frequency: | 4.3 GHz | Installation: | Remote Or Panel Mounted |
| Interface: | ARINC 429 | Manufacturer: | Honeywell Aerospace |
| Type: | Radar | ||
| Highlight: | Anti Jamming Radio Altimeter,Radio Altimeter With All Solid tate C Band,Anti Jamming airplane altimeter 5g |
||
Product Description

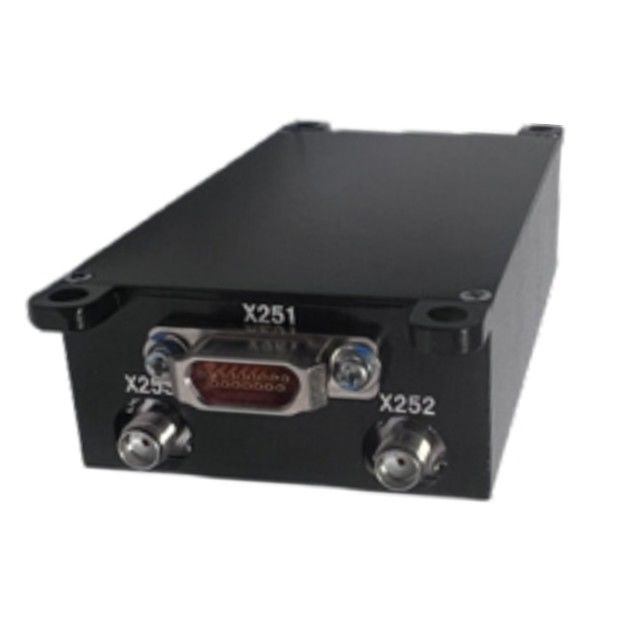

Anti-Jamming Radio Altimeter With All-Solid-State C-Band
radio altimeter with all-solid-state C-band, FMCW, constant beat and closed-loop tracking measurement system.
altimeter has good anti-jamming performance due to it owns narrow-band receiver. The gain can be controlled with altitude, and its equivalent spectrum front detection, weighted frequency discrimination and automatic servo tracking technology.
Technical specifications
| No. | Name | Part Number | Quantity(set/pc) | Dimensions | |
| 1 | Altimeter measurement and control unit | BTSTC-4101A | 1 | 86mm × 62mm × 27mm | |
|
2 |
Transmitting antenna &feeder unit |
Transmitting antenna | BTSTC-4101A-1 | 1 | 75mm × 64mm × 5mm |
| Transmitting feeder | -- | 1 | 2800mm | ||
|
3 |
Receiving antenna &feeder unit |
Receiving antenna | BTSTC-4101A-2 | 1 | 75mm × 64mm × 5mm |
| Receiving feeder | -- | 1 | 2800mm | ||
| Altimeter Range | 0.5-1500m |
| Transmitting power | 20dBm |
| Overall power consumption | ≤ 8 W @ 28V |
| Height measurement accuracy | ±0.4m(H≤20m), ± 2% H (H ≥ 20m), H is the height |
| Work Frequency | 4.2GHz-4.4GHz |
| Work Mode | FM continuous |
| Antenna standing wave | ≤1.7 |
| Receiving/transmitting isolation | 70dB |
| Range of adaptive carrier attitude change | roll angle ± 30 °,pitch angle±30° |
| Anti Doppler capability | ≤680m/s(not less than 2Ma) |
| The update rate of height measurement infor- mation |
20Hz |
|
Dimensions |
1) Host size (excluding connectors): ≤ 86mm × 62mm × 27mm; (Including mounting lug and connector): ≤ 102mm × 62mm × 27mm; 2)Antenna size (excluding connectors): ≤ 75mm × 64mm × 5mm |
| Self inspection time | 2s |
| State transition time | 1s |
Size
