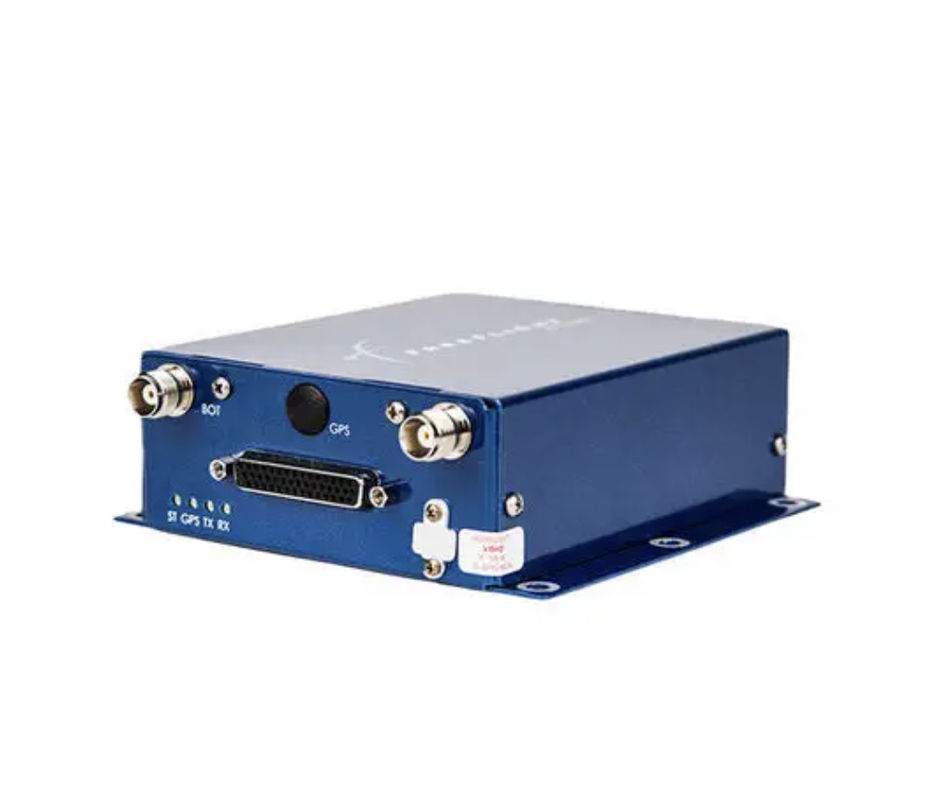

Commercial Aircraft Digital Radio Altimeter Range 0-2500 Feet Patch Antenna

Product Description:

The Radio Altimeter is a cutting-edge avionics component designed to provide pilots with precise altitude measurements above the terrain, crucial for safe takeoffs, landings, and low-altitude flight operations. This state-of-the-art device is engineered to operate within a broad range of temperatures, from a chilling -55°C up to a scorching +70°C, ensuring reliability in diverse atmospheric conditions and geographical locations. Whether flying over the frosty landscapes of the Arctic or the sun-scorched expanses of the Sahara, this Radio Altimeter delivers unwavering performance.

Compatibility is a key factor in the design of the Radio Altimeter, making it a versatile choice for a wide array of aircraft. It seamlessly integrates with the systems of leading commercial aircraft manufacturers such as Boeing and Airbus, among others. This universality ensures that upgrading to this Radio Altimeter is a straightforward process for airlines operating mixed fleets, thereby maintaining consistency in the pilot experience and simplifying maintenance and inventory requirements.

Featuring a digital display type, the Radio Altimeter offers pilots an intuitive and easily readable interface. Critical altitude information is presented clearly, allowing for quick interpretation and decision-making. The digital nature of the display ensures that altitude readings are precise, reducing the probability of human error that can occur with analog readings. The high-contrast screens are designed to be legible in various lighting conditions, from the bright glare of daylight to the dim environment of night operations.

Integration with existing avionics systems is facilitated by the Radio Altimeter’s use of the industry-standard ARINC 429 interface. This high-speed data bus enables the Radio Altimeter to communicate seamlessly with other onboard systems, providing a cohesive flow of information across the aircraft's avionics suite. As a result, altitude data from the Radio Altimeter can be utilized by other systems for functions such as autopilot control, terrain awareness, and warning systems, enhancing the overall safety and efficiency of the aircraft.

An integral component of the Radio Altimeter is the Patch Antenna. This type of antenna is designed to be low-profile and aerodynamic, minimizing drag and blending smoothly with the aircraft's exterior. Despite its unobtrusive design, the Patch Antenna is highly effective at transmitting and receiving the radio altimeter frequency signals that are essential for accurate altitude determination. The Radio Altimeter operates by emitting these signals toward the ground and then receiving the reflected signals, allowing it to calculate the aircraft's altitude above the terrain with precision.

Regarding the radio altimeter frequency, the system operates on designated frequencies that are reserved specifically for aviation use. These frequencies are chosen to minimize interference from other sources, ensuring that the altitude readings provided by the Radio Alimeter are consistent and reliable. The accuracy of these measurements is critical, particularly when navigating through challenging conditions or when flying at low altitudes, where the margin for error is significantly reduced.

In conclusion, the Radio Altimeter is an essential avionics instrument that offers reliability, compatibility, and precision. Its rugged design, capable of withstanding extreme temperatures, digital display for clear altitude readouts, seamless integration with ARINC 429 systems, and efficient Patch Antenna for optimal radio altimeter frequency performance, make it an indispensable tool for commercial aviation. This Radio Altimeter is more than just a piece of equipment; it is a lifeline for pilots, a guardian of passenger safety, and a testament to the technological advancements in the field of aviation.

Features:

• Product Name: Radio Altimeter
• Compatibility: Boeing, Airbus, and Other Commercial Aircraft
• Display Type: Digital
• Frequency Range: 4.2-4.4 GHz
  • Radio altimeter frequency
• Dimensions: 6.5 x 3.5 x 2.5 inches
• Accuracy: +/- 10 feet
  • Radio altimeter height
• Terrain Series Radar Altimeter

Technical Parameters:

Applications:

The BTSTC Model 4101A Radio Altimeter, originating from China and holding a CE certification, is an essential avionic instrument designed for various applications requiring precise altitude measurements. With a minimum order quantity of just one unit and a negotiable price, this product is accessible for both small-scale and large-scale operations. The BTSTC 4101A is meticulously packaged in a sponge and box to ensure its safety during transportation and is ready for delivery within 7 days for sample orders, with payment terms settled through T/T.

As a Terrain Series Radar Altimeter, the BTSTC 4101A boasts a measurement range of 0-2500 feet, which is ideal for a wide range of aircraft, from small private planes to larger commercial airliners. Its impressive accuracy of +/- 10 feet enables pilots to maintain a safe altitude, particularly during critical phases of flight such as takeoff, approach, and landing. With the capacity to supply up to 1000 units per month, BTSTC ensures that demand can be met promptly, supporting fleets of any size.

Operating within the frequency range of 4.2-4.4 GHz, the BTSTC 4101A is capable of delivering reliable and consistent radio altimeter height readings. This is critical for flights over varying terrain, where the altitude above the ground can change rapidly. The unit's lightweight design, at just 2.5 Lbs, allows for easy installation in various aircraft types without significantly affecting the overall weight and balance of the aircraft.

The BTSTC 4101A is not only compliant with the standard CE certification but also meets the stringent requirements of FAA TSO-C87a and ETSO-C87a certifications. These certifications are indicative of the product's high-quality standards and its suitability for use in aviation. Radio altimeter range is a vital parameter that can greatly affect the safety and efficiency of flight operations, and the BTSTC 4101A provides pilots with the confidence needed to fly safely at low altitudes, especially in poor visibility conditions.

In summary, the BTSTC Model 4101A Radio Altimeter is a versatile and precise instrument that is crucial for maintaining aircraft safety. Its wide range of applications includes monitoring radio altimeter height during various flight stages, ensuring compliance with altitude restrictions, and assisting in navigation and landing in challenging conditions. The product's robust construction, reliable performance, and adherence to international safety standards make it an indispensable tool for aviators worldwide.

Customization:

Brand Name: BTSTC

Model Number: 4101A

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: sponge and box

Delivery Time: 7 days for sample

Payment Terms: T/T

Supply Ability: 1000/month

Power Supply: 28V DC

Interface: ARINC 429

Dimensions: 6.5 X 3.5 X 2.5 Inches

Display Type: Digital

Measurement Range: 0-2500 Feet

Our Radio Altimeter operates at a standard radio altimeter frequency , ensuring reliable altitude readings for safe aviation operations. The BTSTC Model 4101A provides accurate altitude measurements within a range of 0-2500 feet. With a digital display and an interface of ARINC 429, this product is designed for straightforward integration into your aircraft's avionics suite.

Support and Services:

The Radio Alimeter product comes with comprehensive technical support and services to ensure its reliable and accurate performance. Our support includes a detailed user manual and online resources that provide guidance on installation, operation, and troubleshooting. Our dedicated team of experts is available to provide technical assistance and answer any questions related to the product's features and functions. In addition to technical support, we offer regular firmware updates to enhance product capabilities and extend its lifespan. Maintenance services are also available to ensure your Radio Altimeter operates at peak efficiency. Please refer to the user manual or visit our support website for more information.

Packing and Shipping:

Product Packaging for Radio Alimeter:

Each Radio Altimeter unit is securely packaged in a static-free, cushioned box, specifically designed to fit the dimensions of the product. The packaging ensures the radio altimeter is protected from any potential shocks, vibrations, or pressure changes that may occur during handling and transportation.

Shipping Details for Radio Alimeter:

The Radio Altimeter is shipped using a reputable courier service that specializes in the transportation of sensitive electronic equipment. Each package is labeled with 'Fragile' and 'Handle with Care' stickers to alert handlers of the delicate nature of the contents. A tracking number is provided with each shipment, allowing the customer to monitor the progress of their delivery in real-time. Customers should inspect the package upon arrival and report any damage to the carrier and to our customer service team immediately.
