INS01 0.1m/S RMS MEMS Integrated Navigation Module 9-36V
Product Details:
| Place of Origin: | China |
| Brand Name: | BTSTC |
| Certification: | CE |
| Model Number: | INS-F70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | sponge and box |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500/month |
|
Detail Information |
|||
| Type: | Navigation Module | Additional Features: | Music And Video Playback, Hands-free Calling, Offline Maps |
|---|---|---|---|
| Connectivity: | Bluetooth, Wi-Fi, GPS | Processor: | Quad-core |
| Memory: | 2GB RAM, 16GB ROM | Operating System: | Android |
| Navigation Features: | Real-time Traffic Updates, Voice Guidance, Lane Assistance | Dimensions: | 7.5 X 4.5 X 1 Inches |
| Compatibility: | Universal | ||
| Highlight: | MEMS Integrated Navigation Module,0.1m/s RMS Integrated Navigation Module,Integrated Navigation Module 9-36V |
||
Product Description

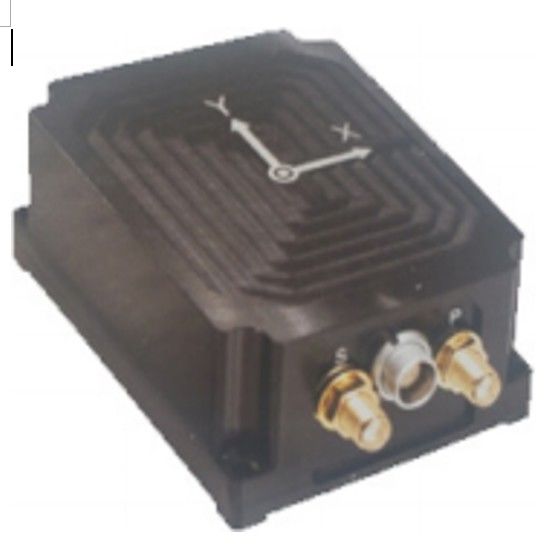

MEMS Integrated Navigation Module
The INS01 integrated navigation module is an inertial measurement
unit (IMU) based on micro-mechanical technology (MEMS), with built-in high-
performance MEMS gyroscope, MEMS accelerometer and GNSS module, to
achieve multi-sensor fusion and integrated navigation solution functions.
Technical specifications
|
Positioning accuracy |
GNSS Valid, Single Point | 1.2 m (RMS) |
| GNSS Valid, RTK | 2cm+1ppm(RMS) | |
| Position hold (GNSS invalid) | 100m/300s | |
|
Heading accuracy |
Single GNSS | 0.1 ° (maneuver required) |
| Dual GNSS | 0.1 ° (2m baseline) | |
| Course keeping (GNSS failure) | 0.3°/30min(RMS) | |
|
Attitude accuracy |
GNSS is valid | 0.05°(RMS) |
| Attitude hold (GNSS failure) | 0.3°/30min(RMS) |
|
Speed accuracy |
GNSS Valid, Single Point | 0.1m/s(RMS) |
| Inertial/odometer combination | 0.1m/s (RMS) (not standard) | |
| Overall dimensions | 85mm×60mm×31mm | |
| Weight | ≤200g | |
| Power consumption | ＜ 6W ,9-36V | |
