F70 Fiber Optic Inertial Integrated Navigation System 12-36V
Product Details:
| Place of Origin: | China |
| Brand Name: | BTSTC |
| Certification: | CE |
| Model Number: | INS-F70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 28000 |
| Packaging Details: | sponge and box |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500/month |
|
Detail Information |
|||
| Low Power Consumption: | Yes | Real-Time Navigation: | Yes |
|---|---|---|---|
| Fiber Optic Gyroscope (Fog): | Yes | High Accuracy: | Yes |
| Multi-Sensor Fusion: | Yes | Global Navigation Satellite System (Gnss): | Optional |
| Integrated Navigation: | Yes | Inertial Navigation System (Ins): | Yes |
| Compact Size: | Yes | Robust Performance: | Yes |
| Inertial Measurement Unit (Imu): | Yes | Data Output Format: | NMEA/RS422/RS232 |
| Lightweight: | Yes | Fiber Optic Accelerometer (Foa): | Yes |
| Highlight: | f70 fiber optic inertial integrated navigation system,fiber optic inertial integrated navigation system 12-36v,f70 inertial navigation system |
||
Product Description

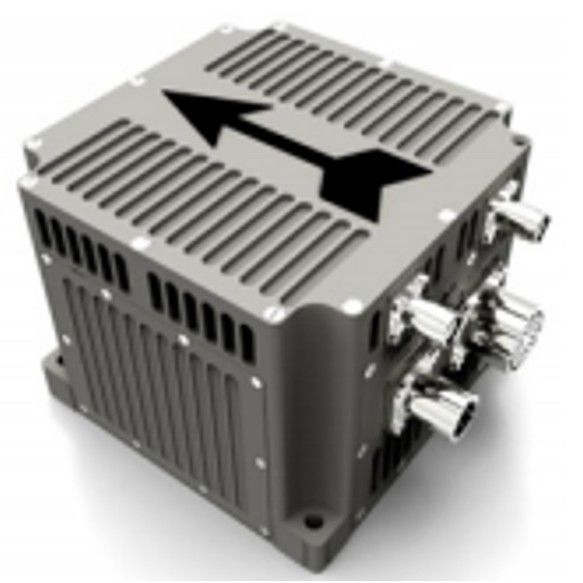

Fiber Optic Inertial Integrated Navigation System
F70 is equipped with high-precision fiber optic gyroscope, high-precision
quartz flexible accelerometer, and it supports GNSS receiver.
F70 can achieve high-precision measurement of moving carriers in terms
of heading, attitude, velocity and position. It is designed with advanced
intelligent integrated navigation algorithms and Kalman filtering,
especially optimization design for GNSS occlusion and multipath
interference situations.
Features
♦ Quickly determine the initial heading and attitude
♦ Real time output for heading and attitude
♦ Built in GNSS receiver
♦ Dynamic fast alignment
♦ INS/GNSS integrated design
♦ Enhanced Kalman filtering algorithm
Technical specifications
| Positioning accuracy | ≤ 3m (1 σ) (Single point) |
| ≤ 2cm+1ppm (1 σ) (RTK) |
| Heading accuracy | 0.05 ° (single antenna dynamic alignment) |
| 0.1 ° (low dynamic dual antenna assistance, 2m baseline) | |
| Attitude accuracy | 0.01°(1 σ) |
| Velocity measurement accuracy | 0.02m/s (carrier velocity is less than 500m/s) |
| Zero bias stability | ≤0.1 °/h (room temperature, 10s smoothing) |
| Overall dimensions | 136mm×136mm×110mm |
| Weight | ≤2.6kg |
| Power consumption | ˂15W,12-36V |
