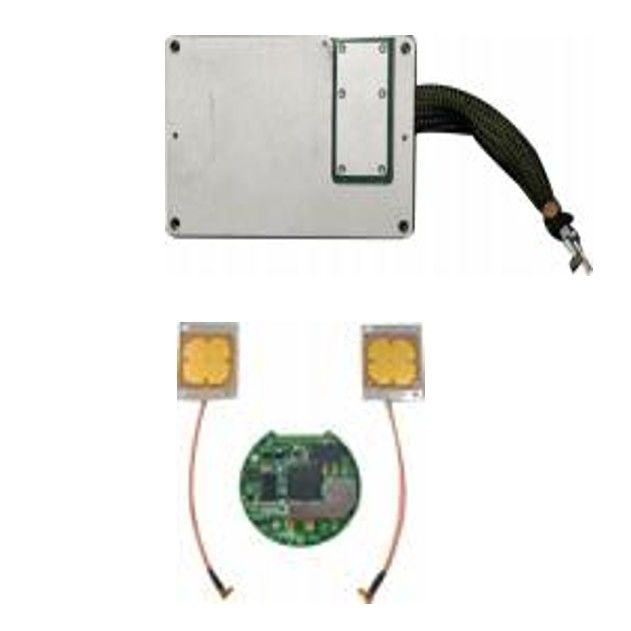

BTSTC-DH Series High Dynamic Satellite Navigation Receiver Module RS422
Product Details:
| Place of Origin: | China |
| Brand Name: | BTSTC |
| Certification: | CE |
| Model Number: | DH06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | sponge and box |
| Delivery Time: | 7 days for sample |
| Payment Terms: | T/T |
| Supply Ability: | 1000/month |
|
Detail Information |
|||
| Positioning Accuracy: | 2.5m CEP | Update Rate: | 10Hz |
|---|---|---|---|
| Channels: | 72 | Power Consumption: | 80mA |
| Power Supply: | 3.3V DC | Antenna Type: | Active Patch Antenna |
| Interface: | UART, SPI, I2C | Frequency: | L1/L2/L5 |
| Weight: | 10g | Operating Temperature: | -40°C To +85°C |
| Support Protocols: | NMEA 0183, UBX, RTCM | Tracking Sensitivity: | -167dBm |
| Size: | 25mm X 25mm X 5mm | ||
| Highlight: | dynamic satellite navigation receiver module rs422,rs422 satellite receiver module,btstc-dh series satellite receiver module |
||
Product Description
High Dynamic Satellite Navigation Receiver Module
BTSTC-DH series high dynamic satellite navigation receiver modules can realize the positioning and timing functions of multi-system integrated navigation. It is widely used in airborne, missile-borne and other high dynamic rotation carrier.
| No. | Item | Performance | |
| 1 | Signal reception capability | BD2 | B1 |
| GPS | L1 | ||
| 2 | Number of channels | 24 independent channels | |
| 3 | Positioning accuracy | PDOP ≤ 3 | Horizontal positioning error ≤ l0m Elevation positioning error ≤ l0m |
| 4 | Working mode | Single BDS mode, single GPS mode, dual system combination mode | |
|
5 |
Dynamic performance |
Velocity | ≥ 3600m/s |
| Acceleration | ≥ 50g | ||
| Jerk | ≥ 20g/s | ||
| 6 | Rotation | 0r/s ～ 10r/s | |
| 7 | Velocity measurement accuracy | ≤ 0.2m/s | |
| 8 | Time to first fix | ≤ 45s | |
| 9 | Out-of-lock relocation time | Lock loss time ≤ 5S | Relocation time ≤ 3s |
| 10 | Unlock time: 5S ～ 60s | Relocation time ≤ 9 s | |
| 11 | Time accuracy | ≤50ns | |
| 12 | Data update rate | 10Hz | |
| 13 | Input/output interface | Data interface | RS422 |
