Anti Jamming Satellite Navigation Receiver 3600m/S 2Hz/5Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | BTST |
| Certification: | CE |
| Model Number: | AR01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 7450 |
| Packaging Details: | box and sponge |
| Delivery Time: | 1 week |
| Payment Terms: | T/T |
|
Detail Information |
|||
| BDS/GPS: | B1/L1 | GLONASS: | L1 |
|---|---|---|---|
| Positioning Accuracy: | ≤ 10m | Receive Sensitivity: | -133dBm |
| Speed: | ≥3600m/s | Acceleration: | ≥18g |
| Jerk: | ≥5g/s | Time Accuracy: | ≤50ns |
| Response Time: | ≤400us | Data Update Rate: | 2Hz/5Hz |
| Operating Temperature: | -40℃ To +85℃ | ||
| Highlight: | satellite navigation receiver 3600m/s,anti jamming satellite navigation receiver,3600m/s anti jamming receiver |
||
Product Description

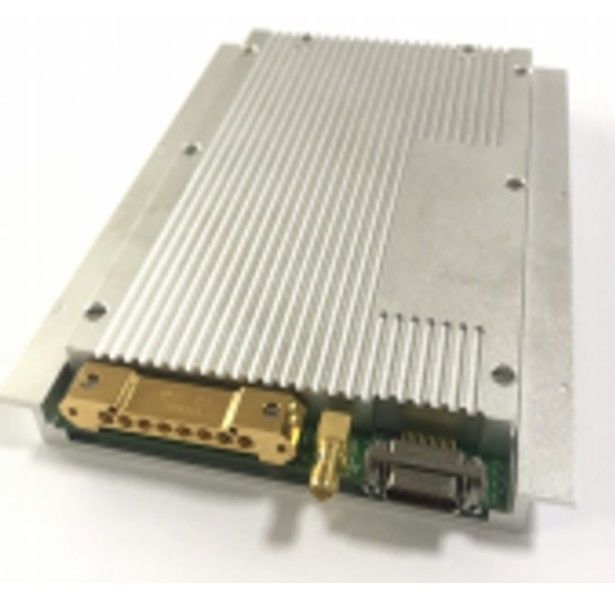

High Performance Anti-Jamming Satellite Navigation Receiver
The BTSTC-AR01 high dynamic anti-jamming satellite navigation receiver adopts space-time adaptive technology for anti-jamming processing, matched filtering technology for satellite signal acquisition, frequency locked loop for satellite signal high dynamic tracking, and satellite navigation in strong interference and high dynamic environment.
|
Frequency ranges |
BDS/GPS | B1/L1 |
| GLONASS | L1 | |
| Number of channels | 24 independent channels | |
|
Positioning accuracy |
GPS (PDOP ≤ 4) (RMS, no SA) |
Horizontal positioning error ≤ l0m Elevation positioning error ≤ l0m |
| GLONASS( PDOP ≤ 4)(RMS) | Horizontal positioning error ≤ 20 m Elevation positioning error ≤ 30 m | |
| Working mode | Single BDS/GPS mode, single GLONASS mode, multi-system combination mode | |
| Receive sensitivity | -133dBm | |
|
Dynamic performance |
Speed | ≥3600m/s |
| Acceleration | ≥18g | |
| Jerk | ≥5g/s | |
| Velocity measurement accuracy |
GPS ≤0.1m/s(RMS) GLONASS ≤0.2m/s(RMS) |
|
| Time to first fix | ≤60s | |
| Out-of-lock repositioning time | Lock loss time ≤ 5S | Relocation time ≤ 3s |
| Loss of lock time 5s~60s | Relocation time ≤ 8 s | |
| Time accuracy | ≤50ns | |
|
Anti-jamming capability |
Narrow-band and single-frequency an- ti-jamming interference-to-signal ratio | ≥85dBc |
| Wideband anti-interference interfer- ence-to-signal ratio | Single Interference ≥ 80 dBc, 3 Interference ≥ 70 dBc | |
| Response time | ≤400us | |
| Data update rate | 2Hz/5Hz | |
| Input/output interface | Data/power interface | J30J-21ZKWP7-J |
|
Environmental adaptability |
Operating temperature | -40℃ ~ +70℃ |
| Storage temperature | -55℃ ~ +70℃ | |
| Overall dimensions |
Satellite receiver: 180mm × 112mm × 21mm Antenna array: 95mm × 95mm × 41mm |
|
| Weight | 1.5kg | |
| Power supply | 28±3V DC |
| Power consumption | ≤20W |
